500kg/h Peanut Butter Production line
  • MOQ:1 SET /Sets
  • Brand:LONGER MACHINERY
  • Certification: CE
  • Supply Ability: 1000 SETS/MONTH Set/Sets Per Month
  • PAY METHOD: WEST UNION L/C T/T CASH
  • Warranty Time: 12 Months
  • LOADING PORT: Qingdao Port
  • Country Of Origin: China

Application

This production line can used for production of the peanut butter,sesame paste/tahini,Almond Butter.It is an ideal equipments for food processing plant.

Main Feature

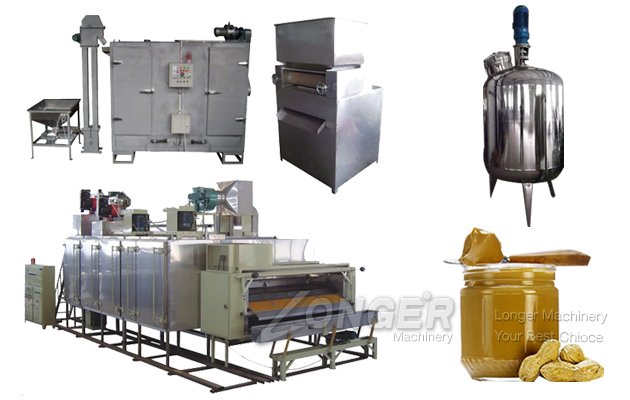

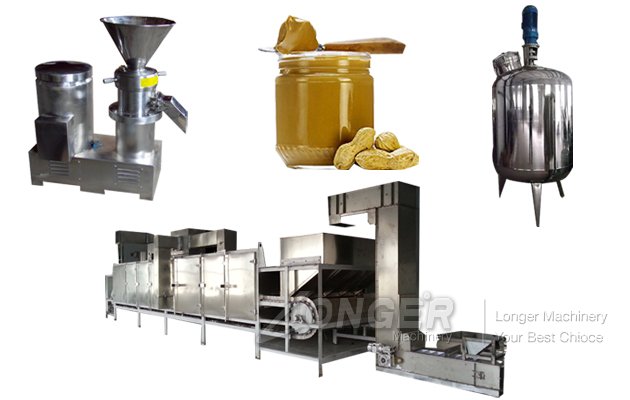

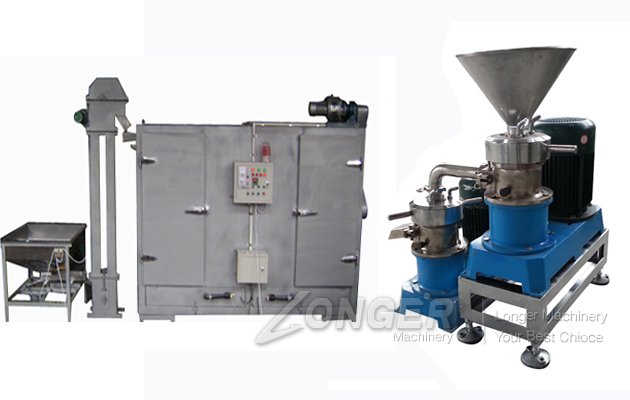

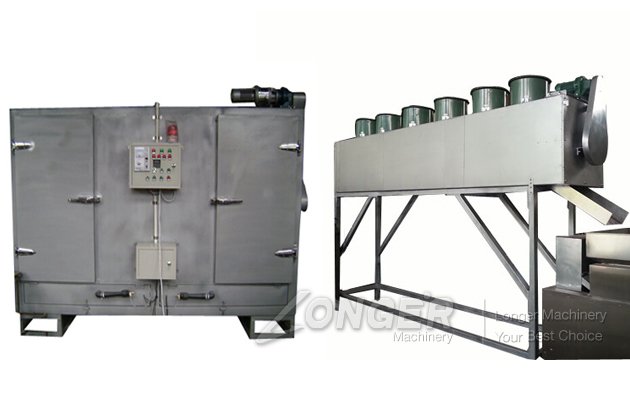

This peanut butter production processing line was designed by reference of the foreign tech. It consisted of feed elevator, continuous roaster, conveyor, cooling machine, decorticating machine, sorting conveyor, grinding machines, pump, storage slot, cooling machine, mixing machine, vacuum deair, etc. It has advantages of high automation, easy-operating integrated control, stable performance, high product quality, etc.

Features

Instruction of peanut butter production line:
peanut butter production line-----Roasting
Batch roaster’s working temperature is 200-210 ºC, 20-30 minutes. Use batch roaster will bake some delicious smells.
peanut butter production line-----Cooling
Peanut will be send cooling belt to cool.
peanut butter production line-----Peeling
Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted andun-blanched peanut kernel is picked up by manual or mechanical.
peanut butter production line-----Primary grinding
Using steel grinder to make the first grinding.
peanut butter production line-----Second grinding
Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68C.
peanut butter production line-----Mixing
Make the butter more homogeneous.
peanut butter production line-----Cooling:
The butter through second grinding should be cooled immediately. The temperature should go down 45C.
peanut butter production line-----Degasser:
Take out the air from peanut butter.
peanut butter production line-----Storage tank
Settling down in the storage tank till the temperature drop to air temperature.
Advantages:
This production line include the peanut roaster,peanut dry peeling machine,automatic feeding machine,grinding machine,vacuum degassing machine,cooling machine and so on.The character is high automation,good reliability,full enclosed production,No pollution,the finished peanut butter has the export standard.The detailed technology and capacity can be customize according to the customer requirements.
This peanut butter production line can produce natural peanut butter,stable peanut butter,smooth type peanut butter,salty peanut butter,sweet peanut butter,particle type peanut butter and so on,it also can produce the tahini and walnut butter,can be equipped with variety of configuration and capacity according to the different customer requirements.In a word,this production line has the advanced technology,stable quality of products.It a best choice for food processing plant.

Technical Data

No.
Name
Power(KW)
Size(mm)
1
Hoist
0.75
1500*800*3000
2
Baking and cooling machine
130
80000*1900*2600
3
Hoist
0.75
1000*500*2800
4
Peeling machine for half
1.5
1100*900*1100
5
Screening belt
0.75
6000*800*1000
6
Hoist
0.75
1000*500*3400
7
store material feeding machine
0.55
700*700*2200
8
Butter grinding machine
11*2
900*350*900
9
Storage tank

500L
10
Paste pump
1.5
1200*300*350
11
Mixing tank
4
1000L
12
Vacuum degassing tank
4
1000L
13
Paste pump
1.5
1200*300*350
14
Storage tank

1000L
15
Filling machine
1.5
1000*1100*1700
16
Control cabinet


17
Pipeline



FAQ

1.This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
We are alibaba legitimate certification company (VIP), and we support payment terms: L/C.Escrow, to ensure your safety.
2.There are too many models, i don't know which one to choose.
Welcome to contact us through TradeManager,we will recommend according to your requirement. If during closing time or weekend,Please send mail to us,we will response within 24 hours.
