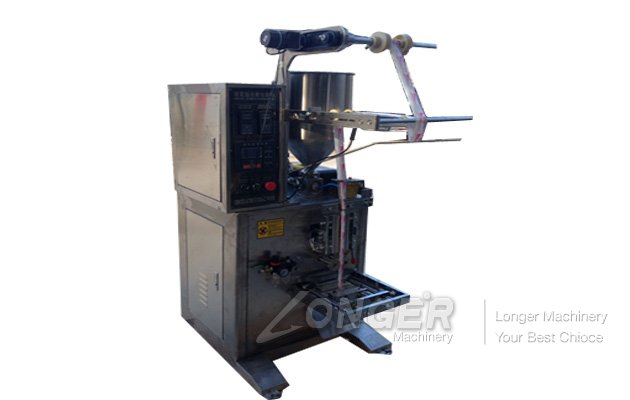

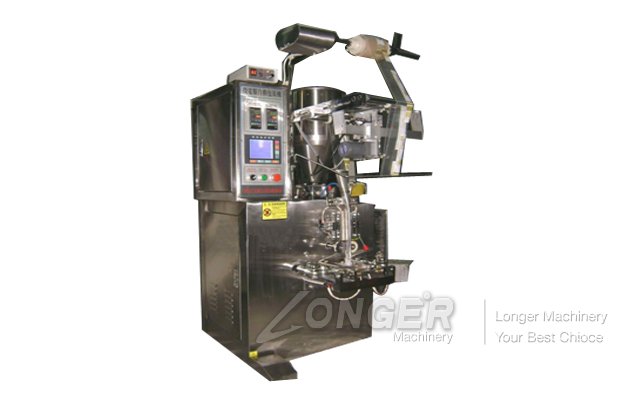

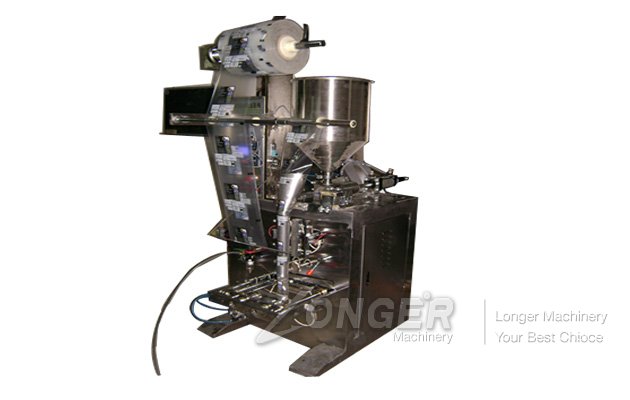

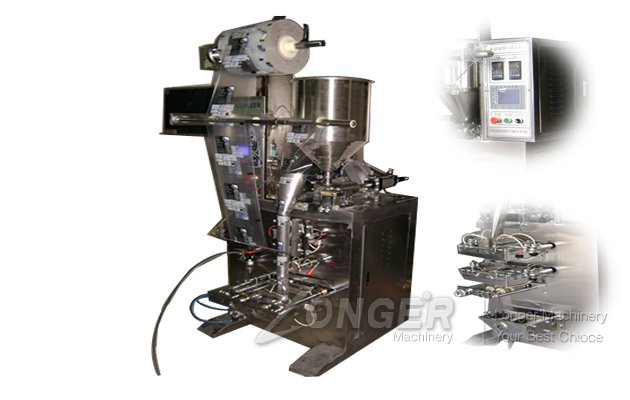

Back Side liquid packing machine
  • MOQ:1 SET /Sets
  • Brand:LONGER MACHINERY
  • Certification: CE
  • Supply Ability: 1000 SETS/MONTH Set/Sets Per Month
  • PAY METHOD: WEST UNION L/C T/T CASH
  • Warranty Time: 12 Months
  • LOADING PORT: Qingdao Port
  • Country Of Origin: China

Application

Suitable for automatic packing of shampoo ,shower gel,skin lotion,tooth paste,cosmetic cream,mayonnaise,fruit jam,edible oil

Main Feature

Automatic liquid packing machine can finish the process like conveying bag,bag making,filling, weighing, sealing, cutting, counting, lot number, etc.

Features

Instructions:
This machine adopts correcting system controlled by microcomputer, owing to a response signal is and set pass through microcomputer it can accomplish whole set to synchronization, sack length,position fixing, voluntarily follow the tracks of light-mark and voluntarily diagnose trouble and show to screen.
This machine can automatically complete a series of actions, such as bag making,filling, counting and sealing.
Suitable for package of foodstuff, daily chemical articles, medicine (For example:ice tea, jellybar, sour milk tea and so on.)
It adopts filled with the filling of oneself and certain quantity. The seal is firm seal and long-shaped fully.
Belong to packing material of hot-sealing, such as polyester/polyethylene, nylon-compound membrane, strengthen-compound membrance, BOPP and so on.
Multi-channel temperature heat sealing, with accurate temperature control, thermal balance is good, sealed quality for a variety of packaging materials and other characteristics; fLttumt
3, sauces packed pump body made of stainless steel materials, packaging volume can be adjusted within the rated range, package pesticides, cosmetics, liquid or semi-fluid.
Advantage of machine:
1) Be able to weight, bag-making, filling, sealing, cutting, lot number automatically.
2) It has color control system which can get the complete trade mark design
(Photo electricity control system).
3) The machine fix stepper motor controller, its advantage is precise, needless to adjust other parts
4) Intelligent temperature control by temperature controller to make heat balance better. Use bilingualdisplay screen control system and stainless steel cabinet
5) Fine packaging performance, low noise, clear sealing texture and strong sealing performance
6)With safe plastic box on rotating blade to avoid hurting operators hands
7) Need to change new temperature controller, blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely)
8) With printer (to be able to code the date and batch number) and rotating blade (be able to adjust the length of bag and shape of bag notch edge packing.


Technical Data

Model LG-300
Bag Size Making L: 40-280mm  | W: 20-120mm
Thickness of Packing Film 0.03-0.07mm
Diameter of Rolling Paper =<400
Dimensions 780x920x1680(mm)
Packing Speed 40-80 Bags/min
Power 1.8KW/220V
Measure Range 10-100ML
Weight 350kg
